CNC Live Tooling Lathes
Live tooling, as the name implies, is specifically driven by the CNC control and the turret of various spindle and powered sub-spindle configurations on CNC lathes to perform various operations while the workpiece remains in orientation to the main spindle.
- Doosan Puma-MX3100 * 15” Chuck * 30” Max Turn Diameter * 39.4” Swing * 60.6” Center to Center * 4” Bar Capacity * Full 5-Axis * 40 HP Turning Spindle * 12,000 RPM 30 HP C6 Capto Milling Spindle
- Doosan Puma-SMX3100 * 12” Chuck * 26” Max Turn Diameter * 60.6” Center to Center * 3.19” Bar Capacity * Full 5-Axis * 40 HP Turning Spindle * 12,000 RPM 30 HP C6 Capto Milling Spindle
- Doosan Puma-300MS * 12” Main Spindle Chuck * 6” Sub-Spindle Chuck * 4” Bar Capacity * Parts Catcher
- Doosan Puma-3100 XLY * 12” Chuck * 2.5” to 20” Steady Rest * 16.5” Max Turn Diameter * 82” Center to Center * 5.12” Y Axis Travel * 7.5 HP Live Tool * 40 HP Turning Spindle

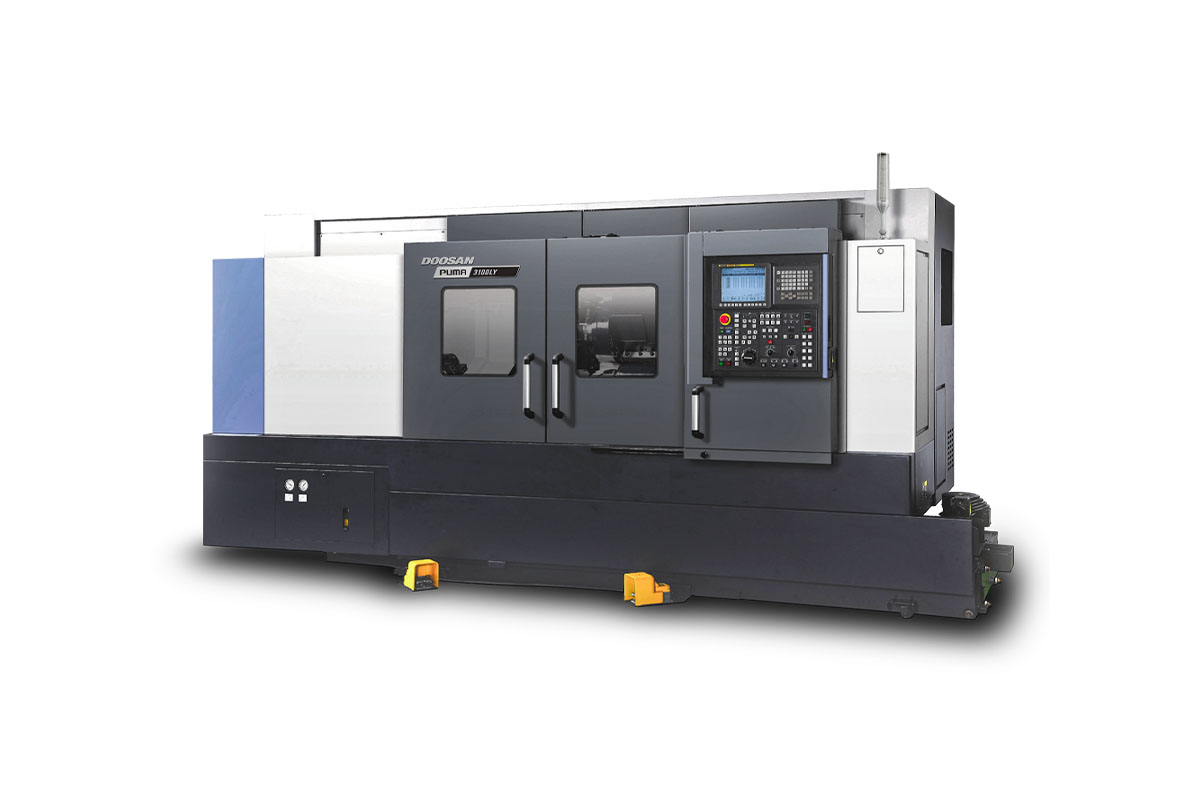

- Doosan Puma-3100 LY * 12” Chuck * 0.375” to 7.25” Steady Rest * 16.5” Max Turn Diameter * 51” Center to Center * 5.12” Y Axis Travel * 7.5 HP Live Tool * 40 HP Turning Spindle
- Doosan Puma-3100 ULY * 15” Chuck * 0.5” to 16.5” Steady Rest * 16.5” Max Turn Diameter * 122.5” Center to Center * 5.12” Y Axis Travel * 7.5 HP Live Tool * 40 HP Turning Spindle
- Smart NL-3000BLM * 12” Chuck * 18.9” Max Turn Diameter * 27.6” Swing * 43.3” Center to Center * 4.06” Bar Capacity * 10 HP Live Tooling * 47 HP Turning Spindle
- Smart NL-3000BLM With Halter Universal 35 Robotic Loader * 12” Chuck * 18.9” Max Turn Diameter * 27.6” Swing * 43.3” Center to Center * 4.06” Bar Capacity * 10 HP Live Tooling * 10.63” Diameter x 9.84” Length x 77 Lbs. Max Loader Capacity
